• Model NO.：EWR400
• Woven Type：Plain
• GSM：400G,M2
• Width：1000mm
• Length：100m
• Fiber Linear Density：600tex
• Epi：9
• Ppi：9
• Diameter of Single Fiber：17micron
• Strength at Break：>1200n,25mm
• Transport Package：Carton
• Specification：1050*280*280mm
• Trademark：XIANGU
• Origin：China
• HS Code：7019520090
• Production Capacity：8000000kg,Month

Basic Info.

Model NO. EWR400 Woven Type Plain GSM 400G/M2 Width 1000mm Length 100m Fiber Linear Density 600tex Epi 9 Ppi 9 Diameter of Single Fiber 17micron Strength at Break >1200n/25mm Transport Package Carton Specification 1050*280*280mm Trademark XIANGU Origin China HS Code 7019520090 Production Capacity 8000000kg/Month

Product Description

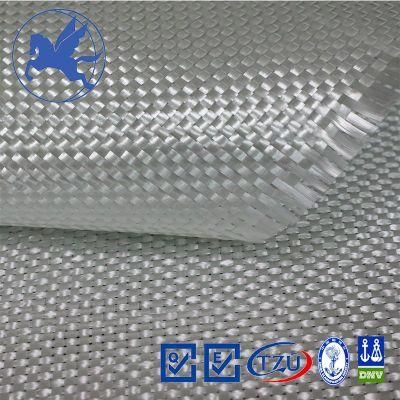

chemical storage tanks plain E-glass fiber fabrics/E-glass woven roving is a kind of E-glass plain bidirectional fabric made by interweaving direct roving.It is compatible with unsaturated polyester,vinyl ester, epoxy and phenolic resin.It is high-performance reinforced material, widely used in hand lay-up and continuous laminating process,easy to handle and has excellent molding performance.It has rapid resin penetration together with a fast wet out time.The cloth also brings a highly translucent finished laminates.It is an excellent reinforcement material for translucent roofing panel,chemical storage tanks,FRP Pipes,boat hulls and decks,truck body panel,automotive parts,furniture parts,sports facilities and so on. Other model also can be provided as customized.

SPECIFICATIONS:

Model:	EWR400
Woven type:	Plain
GSM(g/m2):	400±33
Width(mm):	1000
Length(m):	100
Fiber linear density(tex):	Warp:600/Weft:600
EPI:	9
PPI:	9
Diameter of single fiber(μm):	17
Strength at break(N/(25×100mm)):	Warp:1200/Weft:1100
Thickness(mm):	0.42±0.03
Moisture(%):	≤ 0.15

ROPERTIES:
Weight uniformity,Fast wet-out,Easy air release,Excellent transparency of finished products,Excellent laminate clarity,Compound with UP,VE,EP resins,Low resin consumption.

STORAGE:
The woven roving should be keep dry in their original bags and stored in a suitable place,preferably at room temperature with 35-65% relative humidity.Avoid the sun, rain and fire.

PACKAGING:
1.Roll inner paper tube outer plastic film bag.
2.Roll size:1050*280*280mm,net weight 41.50kg.gross weight 43.50 kg.

KINDLY REMINDER:
We can produce other models please contact us.
