Fabric Furniture

Soft Telescopic Seating Retractable Bleacher with Wooden Back Chair

Chongqing Juyi Industry Co., Ltd.
  • Usage:Playground, Outdoor Party, International Exhibition, Roadshow Promotion, Auditorium, Stadium
  • Condition:New
  • Kind:Retractable Seats
  • Disassembly:Assembly
  • Material:Metal, Wood, Fabric and Foam
  • Color:Optional

Base Info

  • Origin:Chongqing, China
  • Trademark:JUYI
  • Specification:customized
  • Transport Package:Bag, Carton, 20 Gp: 100PCS
  • Folded:Folded
  • Warranty:5 Years
  • Operation:Manual or Motor
  • Size:Customized
  • Model NO.:Jy-790
  • HS Code:940179000
  • Production Capacity:50000 PCS , Year

Description

Basic Info.

Model NO. Jy-790 Size Customized Operation Manual or Motor Warranty 5 Years Folded Folded Transport Package Bag, Carton, 20 Gp: 100PCS Specification customized Trademark JUYI Origin Chongqing, China HS Code 940179000 Production Capacity 50000 PCS / Year

Product Description

Soft Telescopic Seating Retractable Bleacher with Wooden Back Chair JY-790


Soft Telescopic Seating Retractable Bleacher with Wooden Back ChairSoft Telescopic Seating Retractable Bleacher with Wooden Back Chair

Introduction of telescopic/retractable bleacher

Telescopic seating system is widely used in variety spaces like stadiums , TV studios and all kinds of multifunctional   places with its advantage in space saving.
You can enjoy all events sitting on the comfortable telescopic stand when it's pulled and extended in a shape of steps.
When it is closed, you can save a lot of spaces, and carry out other activities.
Our telescopic stand is driven by manual and electric ,with the great structure design ,beautiful style, reliable safety measures and accurate locations.
Easy operation , convenient maintenance, low noise  are advantages of the telescopic seating system.



Specifications for chairs fixed on the bleacher

 SOFT CHAIRS
1.Fabric chair with molded foam, steel structure and spring in foam(some type)
2.Rise mounted type or floor mounted type
3.Powder coated steel leg frame,Solid wood armrest painted with optional color
4.Tablet on the backrest is optional
5.Fabric colors is optional from color swatch
6.Center distance: 500mm



Structures of the telescopic seating system

1. Accordingly to grandstand dimensions, different types of steel profiles are used.It can be manual or motorized through electric engines working at 380V or 220V or by means of small tractors hooked to the structure.

2. The load distributor is a device specially created to reduce the concentrated load transmitted to the flooring system. A special spring system allows to the "unloaded" grandstand to "float" over the wheels.

3. When the grandstand is "loaded" the springs are compressed and the load distributor start working resting over the floor. Detail of the ground fixing system of the last row by means of floor or wall fixing dowels.

4. Traveling wheel shelf is made of 100mmx50mmx3mm rectangle tube, metal material: Q235A; Pillar is made of  3mm Cold-Roll Steel Sheets and Cold Roll Forming, metal material : Q235A.


Specifications  for the system

Moving speed: 100mm/s
Location Accuracy: +_30mm
Driving Motor power: 0.37-1.1kw
Power: AC 380V 50-60HZ(AC 220V  50-60HZ)
Lateral Depth of the steps: 800-930mm; 1800-1850mm
Allowed dynamic load in the step surface: 300kg/
Load of bottom wheel:  300kg/piece

Supply Ability And Trading Terms

1.T/ T with 30% Deposit. Blance befor shipment.
2.Small quantity for trail order allowed
3.Production Ability 50000 sets/month
4.Sample allowed.

5.Lead time: 15-20 working days after receiving your deposit

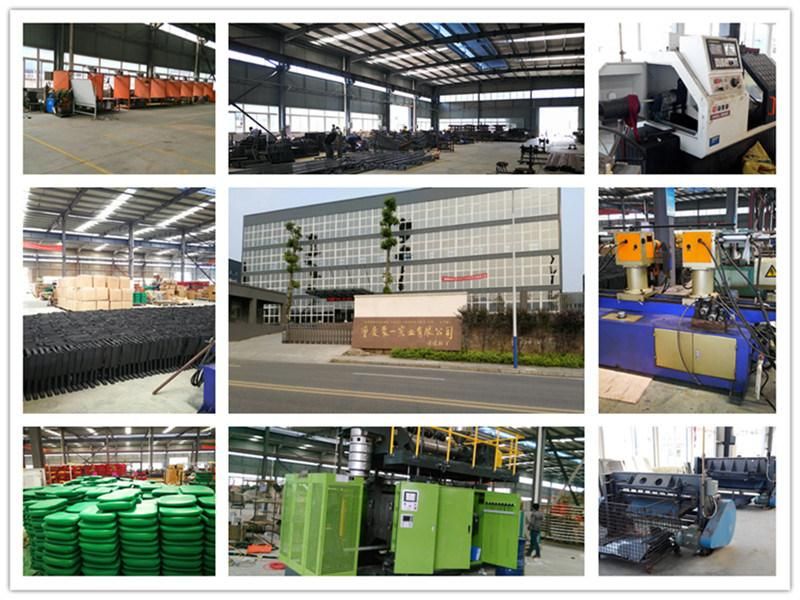

Factory Profile

Chongqing JUYI Theater Equipment CO., Ltd is Located in the mountain City of chongqing which is a new beautiful and vaitalized place
Our Company has become an advanced enterprise in recent years producing
Superior quality chairs and now has the high capacity of producing
Medium and top class theater chairs, telescopic bleachers and stage machines.

In the last several years, We have applied ancillary facilly to some
Important national and reginal projects. Such as 2008 Beijing
Sports
Games Press Certer Hall, 2014 Sports Winter Games in Russia, PLA General Armament Department Conference Hall, Tianjin Binhu Theater,
Gansu JiaYuGuan Theater, Jiangsu Taizhou Theater, 2011 Shenzhen Universiade Yan Tian Stadium and so on.

Soft Telescopic Seating Retractable Bleacher with Wooden Back Chair
Our Certification

Soft Telescopic Seating Retractable Bleacher with Wooden Back Chair
Our Exhibition

Soft Telescopic Seating Retractable Bleacher with Wooden Back Chair
Packing and shipping


Soft Telescopic Seating Retractable Bleacher with Wooden Back Chair

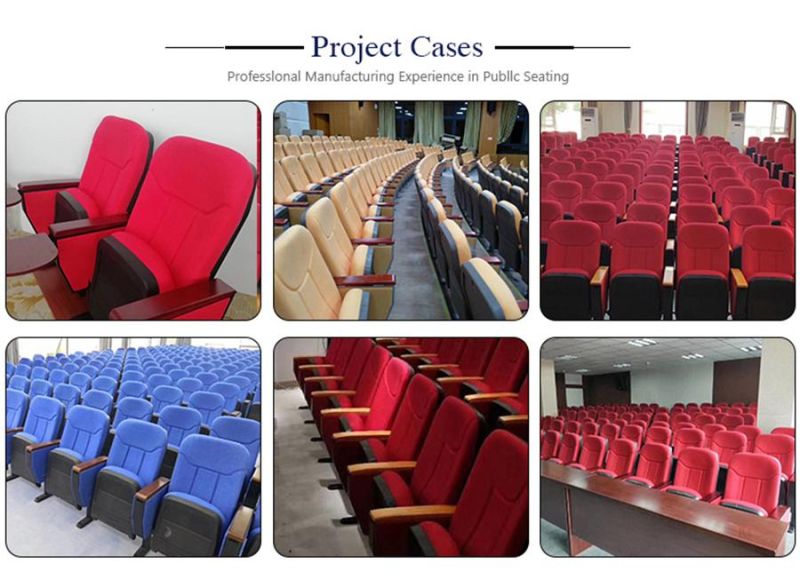

Our Project Cases
Soft Telescopic Seating Retractable Bleacher with Wooden Back ChairSoft Telescopic Seating Retractable Bleacher with Wooden Back Chair
FAQ

Q: Are you a trading company or the professional manufacturer?
A: We are the professional manufacturer.



Q: Can you provide OEM service?
A: Yes, we can.



Q: Do you provide a sample?
A: Yes, of course.



Q: Do you have any certificate?
A: We have CE, ISO, SGS and TUV.



Q: What's your MOQ, shipping and payment terms?
A: 50 seats.Orders less than our MOQ is acceptable but based on different shipping terms.
Shipping is from Chongqing Port, but other port in China is acceptable.
Payment: 30% T/T in advance, 70% balance payment after inspection before shipping.



Q: What's the warranty of your products?
A: 5 yearss. During this period, if any damage caused by non-artificial fault, we will provide the replacement spare parts, otherwise there will be a charge for those spare parts.



Q: What's the delivery time?
A: It's about 20-40 working days according to different quantities.



Q: Can you provide the CAD drawings?
A: Yes, we can make the plan for the clients according to the dimension and requirements.
