• Model NO.：YL - 001
• Function：Sound Insulation, Heat Insulation, Insect Resistant, Dustproof
• Customized：Customized
• Length：Customized
• Thickness：0.8mm-4.0mm
• Transport Package：Packed in Husilong Standard Export Carton
• Specification：Aluminum alloy 6063-T5
• Trademark：EMG , YEMAG
• Origin：Hunan, China
• HS Code：76101000
• Production Capacity：10000 Sp. M , Month

Basic Info.

Model NO. YL - 001 Function Sound Insulation, Heat Insulation, Insect Resistant, Dustproof Customized Customized Length Customized Thickness 0.8mm-4.0mm Transport Package Packed in Husilong Standard Export Carton Specification Aluminum alloy 6063-T5 Trademark EMG / YEMAG Origin Hunan, China HS Code 76101000 Production Capacity 10000 Sp. M / Month

Product Description

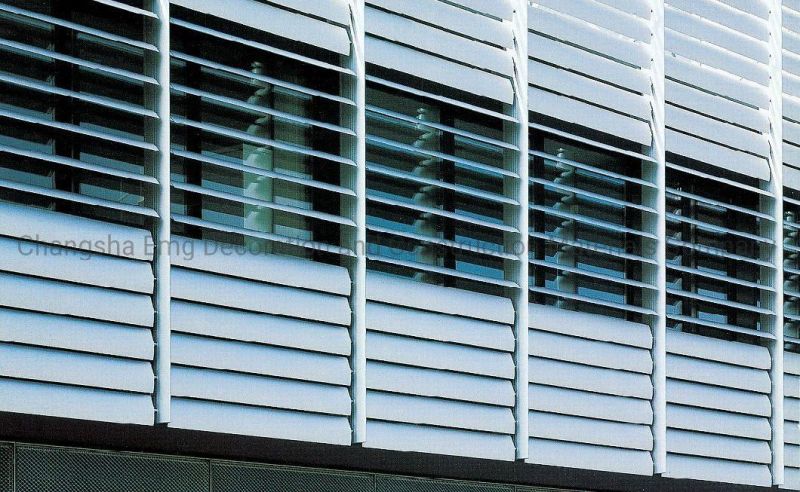

Customized Window Sun Ventilation Aluminum Metal Shutter Louver for Exterior Decorative

Specifications:

Aluminum vertical blinds
Main material: aluminum 3003H16,6063T5
Installation way: horizontal, vertical, tiled on roof

Aluminum vertical blinds introduction:

1.Shinilion Aerofoil louver is ideally for large-scale glass curtain wall, there are guide rail and guide rope on each side,

easy to control (by adjusting angle of slats to get day lighting)

With energy-saving motor inside, which makes our products more efficient and stable. Moreover, we have

multi-option of control systems for your choice, such as: manual crank, electric switch, time switch,

remote control, wind-light-rain sensor, single-control, group-control and so on.

2. Aluminum vertical blinds structure:



3. Aluminum vertical blinds Application:

outside wall of building; glass curtain wall; airport; exhibition hall, etc.

4. Aluminum vertical blinds Feature:

 a. Sunshade:  could prevent at least 90% UV light; and decrease 80% heat of sunlight; absorbing 80% harmful radiation.

 b. Noise-proof:  special design of structure, it can decrease at least 50% outdoor noise.

 c. Wind-break:  It can withstand maximum 130Km/h of wind speed and decrease the wind pressure on outer glass curtain

wall of building.

 d. Protection:  Protect the glass curtain wall from damage by hard objects; and it has high strength of anti-break

 e. Decoration: Powder coated two different colors on both sides of blade, when adjusting the angle of blade, the outer wall will dynamically show different colors, has the effect of decoration.



5. Aluminum vertical blinds technical data:

1. Motor parameter: AC 220V tubular motor or pushrod motors, the running noise≤55dB, 5 years life span.Thickness of coating: 60-80μm Stiffiness of coating: 2H Main material: 3003H16,6063T5 Sunshade factor: ≥75%Noise-proof factor: ≥10dBManual operation force: ≤118NWind resistance: ≥12 gradeColor option: customized (various color); two different colors on both side of blade is possible.

Blade Type	Blade Size    (mm)	Suitable Length                   (mm)
150#	24×150	1500-2000
200#	30×200	1500-2000
250#	38×250	1500-2500
300#	45×300	1500-3000
300#	50×300	1500-3000
450#	70×450	1500-4000
650#	78×650	1500-4500
