• Model NO.：KJZD-1625
• Mechanical Precisio：<0.01mm
• Power Supply：110V,220V,380V 50Hz , 60Hz
• Supported Software：Coreldraw, Autocad
• Model Number：Kjzd-1625
• Drive Motor：Delta, Panasonic, Yaskawa, FUJI Can Be Selected.
• Cutting Speed：0-1500mm,S
• Transmission Interface：Belt Transmission
• Supported Format：Pxf Plt
• Machine Size：3260*2120*1315mm
• Working Area：2500 * 1600mm
• Material Fix Mode：VAC-Sorb
• Transport Package：Packed in Wooden Cases
• Specification：KJZD-1625
• Trademark：kangjia
• Origin：China
• HS Code：8461500090
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. KJZD-1625 Mechanical Precisio <0.01mm Power Supply 110V/220V/380V 50Hz / 60Hz Supported Software Coreldraw, Autocad Model Number Kjzd-1625 Drive Motor Delta, Panasonic, Yaskawa, FUJI Can Be Selected. Cutting Speed 0-1500mm/S Transmission Interface Belt Transmission Supported Format Pxf Plt Machine Size 3260*2120*1315mm Working Area 2500 * 1600mm Material Fix Mode VAC-Sorb Transport Package Packed in Wooden Cases Specification KJZD-1625 Trademark kangjia Origin China HS Code 8461500090 Production Capacity 100 Sets / Month

Product Description

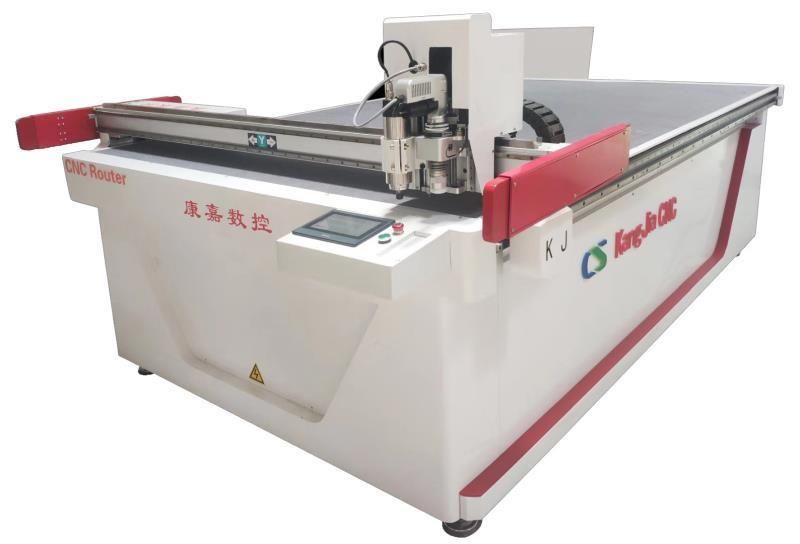

High Quality CNC Round Knife Toilet Seat Gasket Fabric Cutting Machine

  Features:
Automatic CNC Oscillating Knife Cutting Fabric Leather PVC Cutter Machines for sale

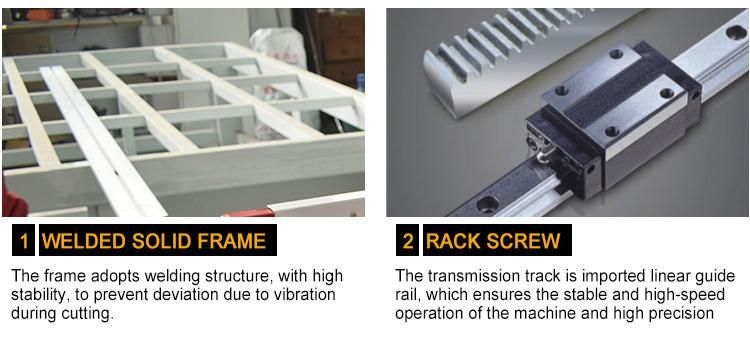

1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance;

2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life;

3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.

4. Kangjia digital cutting machine was designed easy to install, set-up and operate;

5. Being equipped with infrared sensor and emergency stop devices, guarantees safety;

6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;







Cutting Samples display:


Technical Data:

Model	KJZD-1625 (belt transmission)
Operating Characteristic	Computer operation is carried out simultaneously with the cutting machie, quickly complete the data transmasion, and can be used continusly.
Overall dimension	3260*2120*1315mm
Working area	2500mm * 1600mm
Cutting speed	<=140m/min (per material)
Cutting thickness	0.1-50mm
Cutting accuracy	±0.1mm
Cutting material	Flexible materila, such as leather, coiled mat, sponge, foot mat, cardboard, sofa, cloth, PE board etc.

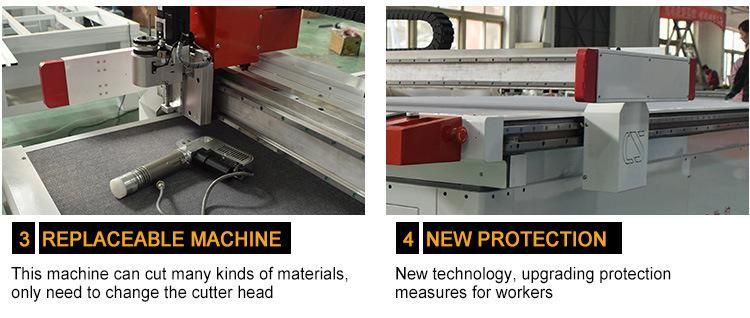

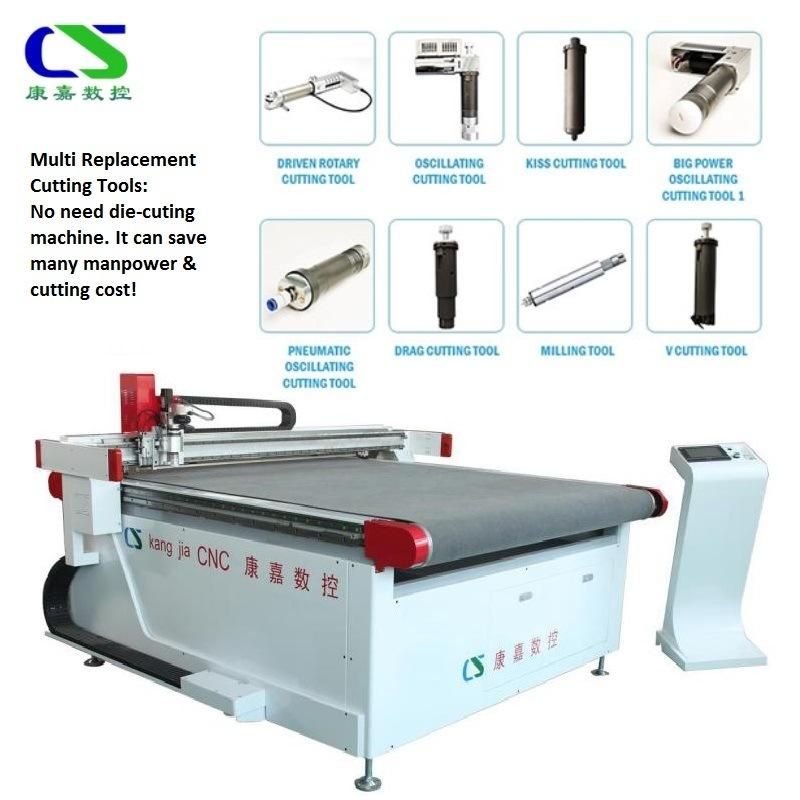

Multifunctional head for different cutter	Half knife, full knife, punching roller, V-cutter, milling knife, pneumatic knife, eletric knife, Circular knife (round knife / rotary knife); pin

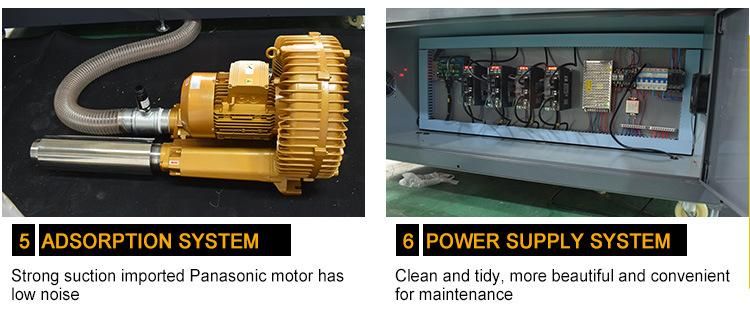

Material fixed type	Vac-sorb (vacuum absorption)
Location mode	Infrared laser lamp
Drive motor	Delta, Panasonic, YASKAWA, Fuji can be selected.
Power of suction fan	9kw
Working voltage	220V/380V/±10% 50hz/60hz
Safty device	Mechanical anti-collision device
Transmission interfacr coffret	Enternet transmission
Driving method	belt
Control system	LED touch screem
Guid rail	Brand: Yintai
Frame structure	Body welding
Suction case	Aluminum case
Compatible software	Kangjia intelligent software
Driving system	Servo motor

Product Advantage:
1. Environmental protection, no smoke & no smell when cutting, not burning edge after cutting.
2. High Efficiency, the cutting speed can reach max. 1500m/s (per material), save time and worker cost.
3. Beautiful appearance, no yellow edge & rough selvedge after cutting.
4. Multifunctional cutting, support abnormity cutting.
5. Wide range of applications: garment industry, automotive interior (floor mat, seat cover etc.), advertise industry, furniture industry (sofa), leather industry, clothing industry etc.

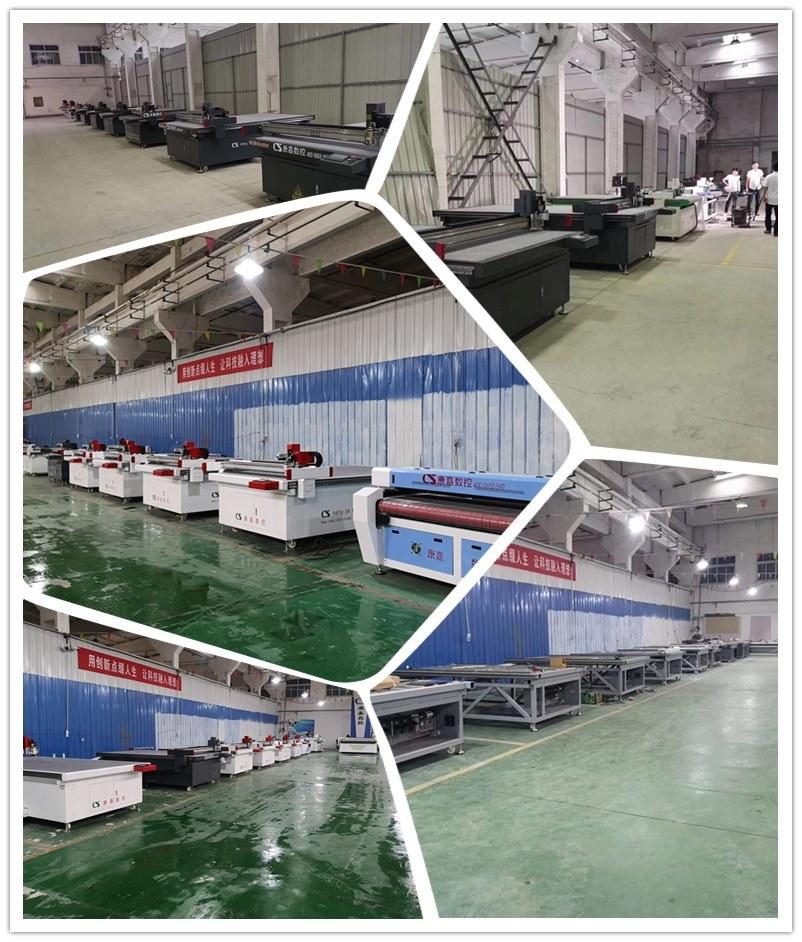

Workshop show:


Certificates:



Exhibition:

FAQ:
Q: 1. How can I choose a suitable Knife cutting machine?
A: Please provide us some info, then we can recommend you the suitable machine:
1)What materials are going to cut? Are they rolled or not? Breathable or not?
2)What's the largest size of original materials?
3)What's the thickness of materials?
4)Excepting for cutting, do you need more functions, like drawing, punching holes, scanning, feeding, CCD camera, etc.?

Q: 2. Can you design a machine for me depending on my requirements?
A: Of course, we will give our professional suggest and discuss details with you for the machine which matches all the requests with best cost performance.

Q: 3. What should I do if the machine has any problem in future?
A: We supply online/phone technical support and door to door service. Anything confuse or not goes well, pls contact us in the first time.

Q: 4. What's the warranty policy?
A:Standard warranty is 12 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period.
Problems caused by wrong operate will also well-solved, but not for free.
We also supply life long after-sales service. No matter when, you can count on our best service for your machine.

Q: 5. If I don't know this machine before, how can I operate it?
A: We supply face to face training and provide operating video, user manual, and telephone calls to help.
It's easy to learn, one inexperience people can learn it within one day.
