• Model NO.：JY-780
• Material of The Chair：Wood and Fabric
• Platform：18mm Plywood
• Structure：Steel Dealt with Powder Coating
• Railings：Steel or Stainless Steel
• Curtains：Fabric
• Motor：Optional
• Operation：Manual or Electrical
• Rows：Customized
• Transport Package：3500 PCS , 40 Hq
• Specification：SGS
• Trademark：JUYI
• Origin：Chongqing
• HS Code：9401790000
• Production Capacity：50000 PCS ,Month

Basic Info.

Model NO. JY-780 Material of The Chair Wood and Fabric Platform 18mm Plywood Structure Steel Dealt with Powder Coating Railings Steel or Stainless Steel Curtains Fabric Motor Optional Operation Manual or Electrical Rows Customized Transport Package 3500 PCS / 40 Hq Specification SGS Trademark JUYI Origin Chongqing HS Code 9401790000 Production Capacity 50000 PCS /Month

Product Description

Retractable Bleacher Telescopic Tribune for All Kinds of Events JY-780 Introduction of telescopic/retractable bleacherTelescopic seating system is widely used in variety spaces like stadiums , TV studios and all kinds of multifunctional   places with its advantage in space saving.
You can enjoy all events sitting on the comfortable telescopic stand when it's pulled and extended in a shape of steps.
When it is closed, you can save a lot of spaces, and carry out other activities.
Our telescopic stand is driven by manual and electric ,with the great structure design ,beautiful style, reliable safety measures and accurate locations.
Easy operation , convenient maintenance, low noise  are advantages of the telescopic seating system.

Specifications

1.Retractable seat system, with tip up (Rise mounted) upholstered chairs, wood plate with back of seating and backrest
2.Luxury seats with flip up armrest, colour could be selected by client
3.Electric drive or manal drive
4.Including cutains & handrail at two side of bleachers, including & carpet/PVC & steps
5.Motor driven bleachers will include electric device, motor,control key etc.
7.Center distance of the chair:520mm or 550mm



  Specifications of the structure

1. Accordingly to grandstand dimensions, different types of steel profiles are used.It can be manual or motorized through electric engines working at 380V or 220V or by means of small tractors hooked to the structure.

2. The load distributor is a device specially created to reduce the concentrated load transmitted to the flooring system. A special spring system allows to the "unloaded" grandstand to "float" over the wheels.

3. When the grandstand is "loaded" the springs are compressed and the load distributor start working resting over the floor. Detail of the ground fixing system of the last row by means of floor or wall fixing dowels.

4. Traveling wheel shelf is made of 100mmx50mmx3mm rectangle tube, metal material: Q235A; Pillar is made of  3mm Cold-Roll Steel Sheets and Cold Roll Forming, metal material : Q235A.



Specifications  for the system

Moving speed: 100mm/s
Location Accuracy: +_30mm
Driving Motor power: 0.37-1.1kw
Power: AC 380V 50-60HZ(AC 220V  50-60HZ)
Lateral Depth of the steps: 800-930mm; 1800-1850mm
Allowed dynamic load in the step surface: 300kg/
Load of bottom wheel:  ≥ 300kg/piece



Terms

MOQ:100 seats

Delivery Time:about 20-40 working days according to different quantities

Payment Terms: T/T, L/C

Port of delivery:Chongqing,China

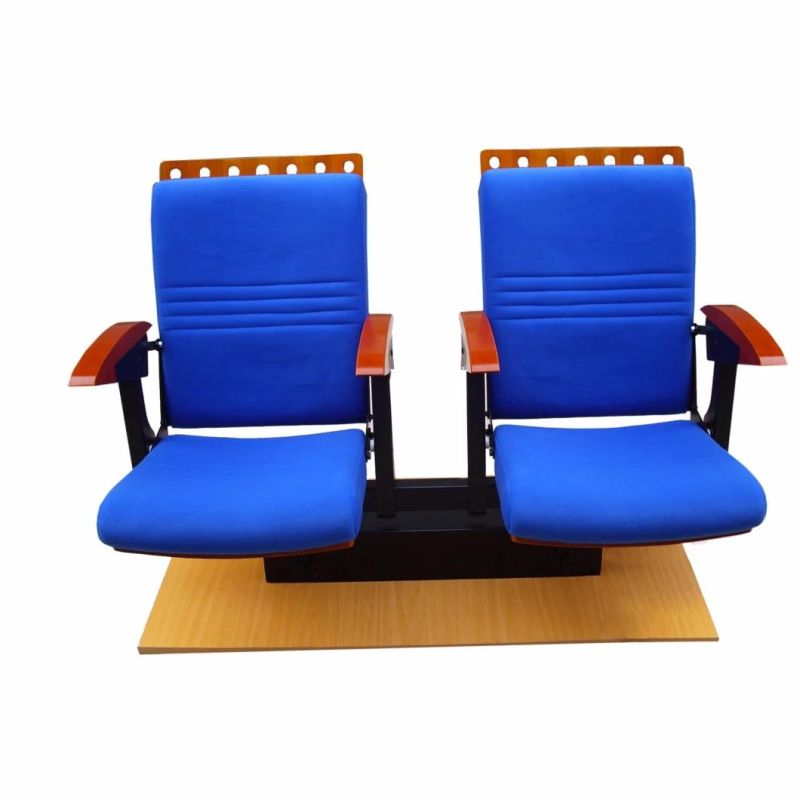

Bleacher JY-780 Chair Type

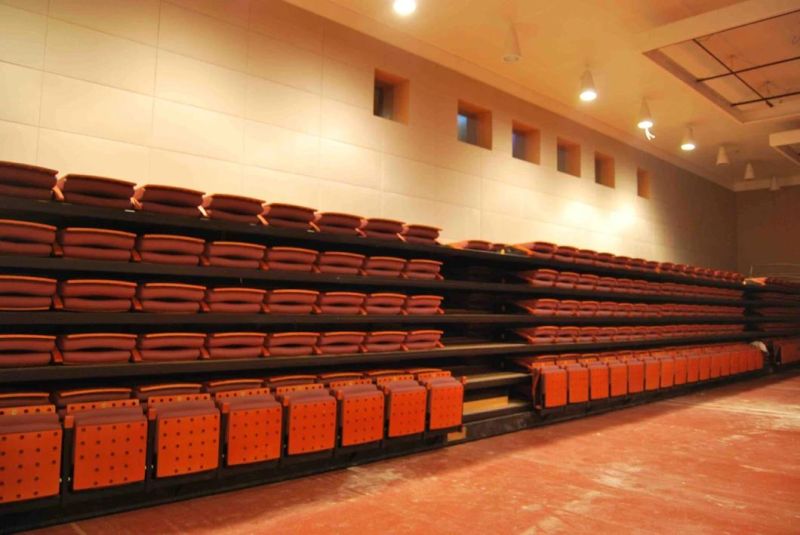

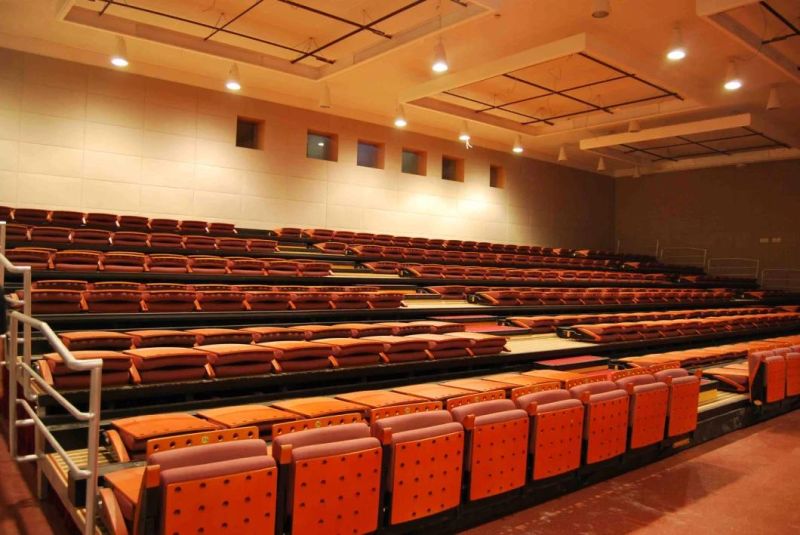

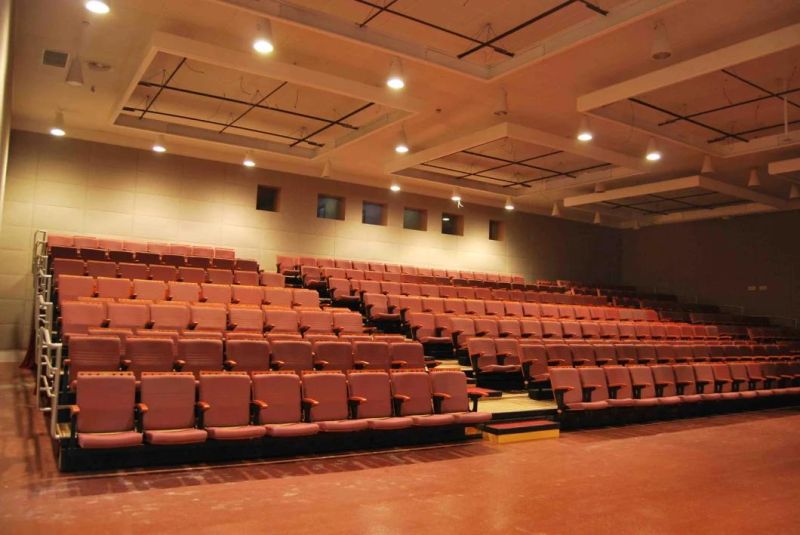

Telescopic bleacher/Retractable seating system JY-780 fully installed





 PACKING AND SHIPPING

COMPANY INFORMATION

Established in 2006, Chongqing Juyi Industry Co., Ltd is a professional manufacturer and exporter that is concerned with the design, development and production o f auditorium chairs, telescopic bleacher, outdoor metal bleacher and stadium chairs. We are located in the mountain city Chongqing with convenient transportation access and ancient culture and modern architectures.All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

We have over 100 employees, an annual sales figure that exceeds USD 4.5 million and are currently exporting 50% of our production worldwide.Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.

As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching America,Canada,Columbia,Mexico,Iceland,Finland,Norway,UK,Malta,Thailand,Saudi Arabia,Indonesia,Kenya and so on.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

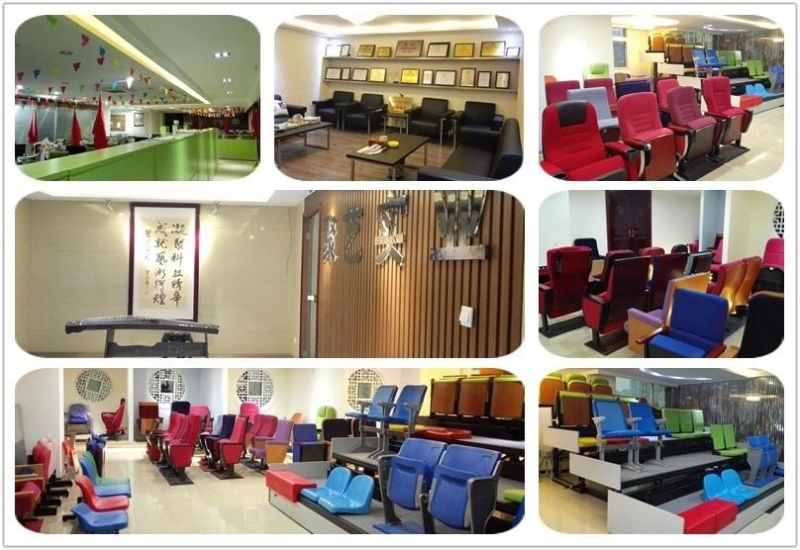

Office
