• Model NO.：CNMC
• Air Volume：1542 - 33000 M3 , H
• Filter Area：25.7- 458 M2
• Filter Rate：0.8 - 1.5m,Min
• Material：Q235 Steel
• Equipment Resistance：1200PA
• Equipment Under Negative Pressure：< 6000PA
• Particle Concentration：<100G,M3
• Dust Emission Concentration：<20mg
• Dedusting Type：Online Pulse Cleaning
• Application Industry 3：Cement, Rubber, Grinding Machine. Crusher
• Transport Package：Nude
• Specification：customization
• Trademark：CNP
• Origin：China
• HS Code：84213900
• Production Capacity：20unit , Week

Basic Info.

Model NO. CNMC Air Volume 1542 - 33000 M3 / H Filter Area 25.7- 458 M2 Filter Rate 0.8 - 1.5m/Min Material Q235 Steel Equipment Resistance 1200PA Equipment Under Negative Pressure < 6000PA Particle Concentration <100G/M3 Dust Emission Concentration <20mg Dedusting Type Online Pulse Cleaning Application Industry 3 Cement, Rubber, Grinding Machine. Crusher Transport Package Nude Specification customization Trademark CNP Origin China HS Code 84213900 Production Capacity 20unit / Week

Product Description

Introduction

Our bag type filter is a kind of small and medium-sized pulse jet dust collector. The most high efficient dust removal for your dust prevention circumstance. To adopt pulse blowing dedust and PLC controller, the automatic working can be come true. The advantage is reliable operation, easy maintenance and management. Through our design program and every kind of detectors signal, we can see every parts of the equipment during it working.   Our dust collector equipment often can be widely used in cement, metallurgy, electric power, chemical and other industries of dust gas purification and fine powder material recycling collection.Structure Composition


The customized dust catcher are composed by the filter chamber housing, clean air chamber enclosure, filter bag, filter cage, pulse injection device, ash hopper, screw conveyor and discharger, etc. At the end, it needs centrifugal fan for power system. In another type of dust catcher, the dedusting job can be done by every chamber isolation. The every chamber of the pulse and soot cleaning cycle by soot cleaning program controller.

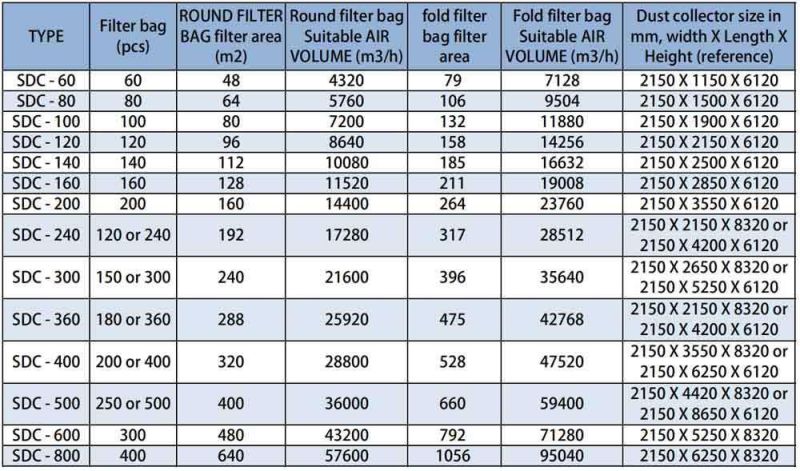

Specification
Note: The sheet just for your reference, we can supply custom service.

Factory view

Business Operation

Details of our business operation

 We will beginning our service upon received your dust collection requirement. According to your detailed requirement, we will design the dust collector to suit for your circumstance.



In another words, for every customer, we will customized the equipment for every differenct circumstance application.

As usual, according to the detailed dust collection circumstance Analysis, we can assure our equipment building material the mostly suitable (matching) for application. So that, One set of equipment can be used for more than 10 - 20 years. Even more, under good maintaice, It can support for 30 years operation.

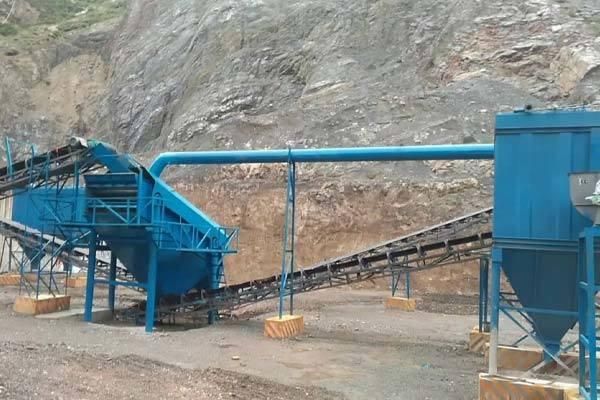

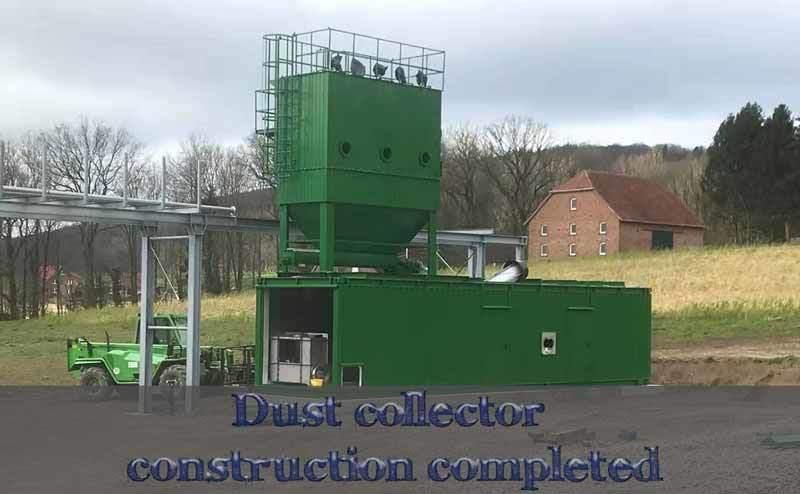

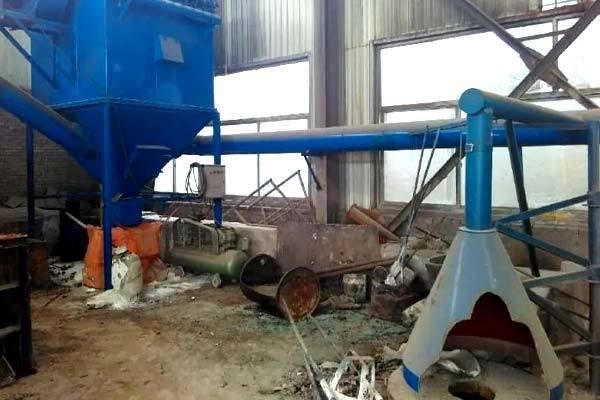

Working Occasion

Please see the following working circumstance. For more other detailed application not appear in the following picture , please be sure to send us e-mail with your questions. We will try our best to answer them for you. Hope that we can give you more professional suggestion for reference.

Shipment




Spare parts



Company Information

CNP Co., Ltd. was founded in 2008, specializes in the field of air pollution control and bag filters. Including engineering design, planning, consulting, equipment research and development, manufacturing, sales, installation and commissioning, as well as production and services.

Based on the high starting point, CNP Co., Ltd., with a positive and upward pioneering spirit, will further create brilliancy as to technological innovation, intellectual property rights and independent brand strategy.

Our Services

It is appreciated that provide us more information when you enquiry, thanks!

1. Enquiries quickly reply within 24 hours.

2. After-sales service, rapid response, the engineer installation guide. The feedback problems will be replied within 24 hours. If any problem, We will arrange professional engineers within 48 working hours to solve it.

3.We have good faith principle. we will sure the products is high quality before shippment.
